WMP.B360.ZIN

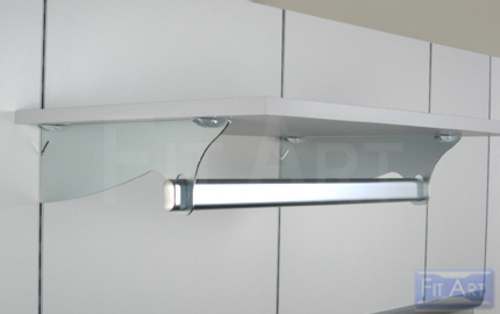

Support using saddles and for hangrail 36x18 mm - length 380 mm

Previous Next
Usage notes For shelf/hangrail combination. Hangrail with oval tube 36 x 18 mm on INU series cradles. PRS blocking device optional
Technical specifications Hangrail (oval tube 36 x 18 mm) on: INU series cradle, lateral or centra
Lengths Finishes * Special finishing   Materials Legend: Aluminium Steel Plastic 380 mm*******380 mm******380 mm******
Downloadable Documents
Correlated Each image send back to the technical sheet Article Description Material Finishing Quantity B36.1500.ZIN Oval tube 36 x 18 mm - Steel Steel
B36.2000.ZIN Oval tube 36 x 18 mm - Steel Steel
B36.3000.NAT Oval tube 36 x 18 mm with reinforced section - Ribbed aluminium Aluminium
CAV.APCN.TRA Transparent plastic saddle, central Plastic
CAV.APDX.TRA Transparent plastic saddle, right Plastic
CAV.APSX.TRA Transparent plastic saddle, left Plastic
CAV.N1ME.NKS Metal saddle to be side inserted Metal
CAV.R1DX.ZIN Metal saddle, lateral right Steel
CAV.R1SX.ZIN Metal saddle, lateral left Steel
CAV.R2CN.ZIN Metal saddles, central Steel
CAV.T1DX.ZIN Metal saddle, lateral right Steel
CAV.T1SX.ZIN Metal saddle, lateral left Steel
CAV.T2CN.ZIN Metal saddles, central Steel
INU.CN36.ARG Central cradle for hangrail supports - for oval tube 36 x 18 mm Plastic
INU.LT36.ARG Lateral cradle for hangrail supports - for oval tube 36 x 18 mm Plastic
PRS.1000.ARG Blocking device to block side-to-side oscillation of supports, Ø 32 mm Plastic
PRS.5000.NKS Blocking device to block side-to-side oscillation of supports, Ø 32 mm Plastic
PRS.6000.TRA Blocking device to block side-to-side oscillation of supports, Ø 32 mm Plastic
VEN.GLA5.TRA Silicone suction pad to hold glass Plastic
VEN.TRP5.TRA Resting suction pad Plastic
